yuanyeled - Led Grazers Dmx Light Bar Facade Lighting Outdoor Building Wall Washers Bridge Lamps Ad. n Repeat product
Shenzhen Dinglixiang Electronic Co.,Ltd. has made immense progress in the development of roducts. Led Grazers Dmx Light Bar Facade Lighting Outdoor Building Wall Washers Bridge Lamps is the product of our company made by the state-of-the-art technologies. Talents and technology are indispensable supporting factors for the Led Grazers Dmx Light Bar Facade Lighting Outdoor Building Wall Washers Bridge Lamps to be widely praised. In the future, Shenzhen Dinglixiang Electronic Co.,Ltd. will continue to attach importance to the cultivation of talents, continuously improve the staff's business level and professional skills, strengthen technological innovation, and continuously enhance the comprehensive competitiveness of the company, in order to achieve'building a century-old evergreen enterprise and creating a well-known international brand' Work hard for this grand goal.
| Lamp Luminous Efficiency(lm/w) | 50 | Lighting solutions service | Lighting and circuitry design, auto CAD layout, Onsite metering, Project Installation |
| Light Source | LED | Item Type | Wall Washers |
| Input Voltage(V) | DC24V/AC85-265 | Lamp Luminous Flux(lm) | 3000-12000 |
| CRI (Ra>) | 80 | Warranty(Year) | 5-Year |
| Working Temperature(℃) | -20 - 55 | Working Lifetime(Hour) | 50000 |
| IP Rating | IP65 | Place of Origin | Guangdong, China |
| Brand Name | yuanyeled | Application | Sports Stadiums |
| Item No. | Full Spectrum led bar grow lamp for greenhouse hydroponic plant | LED type | Epistar/Bridgelux/Creechips |
| Size | length 500/600/1000/1200/1500mm |

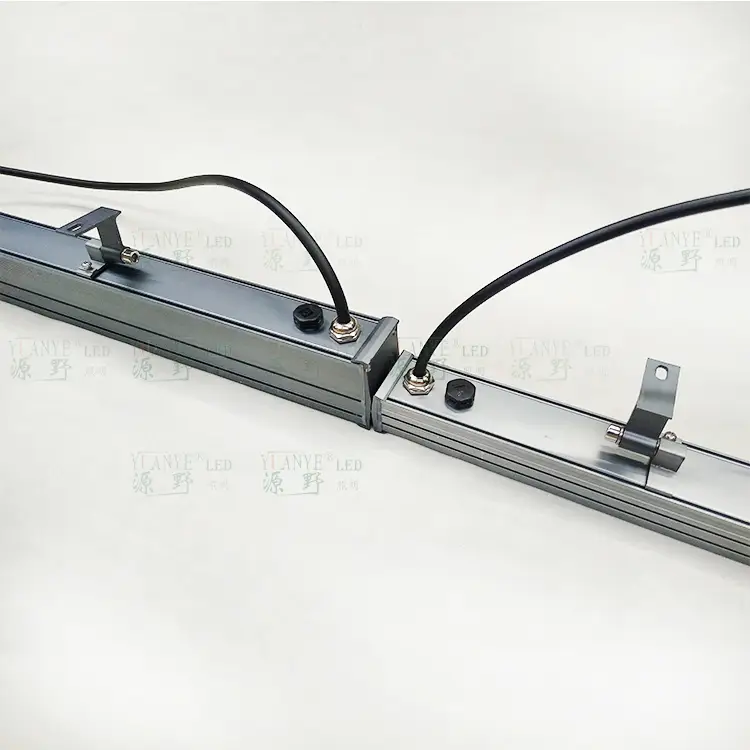

LED outdoor wall washer light
This is 100% factory owned private mold with 6063 Aluminum Housing puls Tempered Glass Cover,beautiful appearance and reasonable waterproof structure,as well as heat-resisting and impact resistance.
This wall washer is suitable for outdoor, indoor use.
The waterproof is IP20,IP65, IP67 and IP68.
• Multiple Power Options - custom watt 1w to 50w
• Input Voltage Options – AC100-240V, AC/DC12V,24V,36V,48V(model with W40*H57mm) ;
AC/DC12V,24V,36V,48V(model with W40*H33mm)
• Light color Option - RGB/RGBW/Single color(Red, blue, green, yellow, pink, purple, white color ...) RGBCCT,RGBWCCT
• Beam angle Option - 5°,8°,10°,15°,30°,45°,60°,90°,120°,10ox15o,10ox35o,10ox45o,10ox50o,10ox60o,30ox65o
• Eco-friendly, UV-Resistant, waterproof IP20,IP65,IP67 and IP68.
• 2 models for options, same width 40mm, custom length 1200mm maximum, hight 57mm or 33mm.
Name | Value | ||||
Reference size and watt (YY-XQ..W-4057 and YY-XQ..W-4033 suitable) | L100mm,2w,3w,4w,5w L150mm,4w,5w, 6w,7w L200mm,6w,7w,8w,9w,10w L250mm,8w,9w,10w,12w L300mm,12w,14w,15w L350mm,12w,14w,15w,16w,17w L400mm,16w,17w,18w,19w,20w L450mm,18w,19w,20w,21w,22w L500mm,18w,19w,20w,21w,22w,23w,24w,25w L550mm,18w,20w,21w,22w,23w,24w,25w,26w,27w L600mm,18w,20w,21w,22w,23w,24w,25w,26w,27w,28w,29w,30w L650mm,18w,20w,21w,22w,23w,24w,25w,26w,27w,28w,29w,30w,31w,32w L700mm,18w,20w,23w,24w,25w,26w,27w,28w,29w,30w,31w,32w,33w,34w,35w L750mm,18w,20w,24w,25w,26w,27w,28w,29w,30w,31w,32w,33w,34w,35w,36w,37w L800mm,18w,20w,24w,25w,27w,28w,29w,30w,31w,32w,34w,35w,36w,37w,39w,40w L850mm,18w,20w,24w,25w,27w,28w,29w,30w,31w,32w,34w,35w,36w,37w,40w,42w L900mm,18w,20w,24w,25w,27w,28w,29w,30w,31w,32w,35w,36w,37w,40w,42w,45w L950mm,18w,20w,24w,25w,27w,28w,29w,30w,31w,32w,35w,36w,40w,42w,45w,47w L1000mm,18w,20w,24w,25w,27w,28w,30w,32w,35w,36w,40w,42w,45w,47w,48w,50w L1200mm,18w,20w,24w,25w,27w,28w,30w,32w,35w,36w,40w,42w,45w,47w,48w,50w | ||||
Width n Height | YY-XQ..W-4057, width 40mm, height 57mm YY-XQ..W-4033, width 40mm, height 33mm | ||||
Material | Aluminum + Tempered Glass | ||||
Light Source | Brand SMD with lifespan 50000 Hours | ||||
CCT | 2200K,2700K,3000K,4000K,4500K,5000K, 6000K,6500K, RED,BLUE, GREEN,YELLOW,AMBER RGB, RGBW, RGBY, RGBCCT,RGBWCCT (CCT: Correlated Color Temperature) | ||||
Waterproof Rate | IP20 IP65 IP67 IP68 | ||||
Input Voltage | YY-XQ..W-4057, AC100-240V, AC/DC12V,24V,36V,48V YY-XQ..W-4033, AC/DC12V,24V,36V,48V | ||||
control/dimming | ON/OFF, DMX512,DALI,0/1-10V, TRIAC,PWM,ZIGBEE... | ||||
Certificate | CE , RoHS | ||||
Package and Logo | Standard Export Carton with Individual pack / PE layer ; Customized packing and Logo is acceptable. | ||||
underwater, wet location, coastal regions...
All our products are CE certified as well as RoHS compliant. Please contact us too if you need UL/CUL.
Shenzhen Dinglixiang Electronic Co., Ltd
Shenzhen Dinglixiang Electronic Co., Ltd, factory of DLX (H.K.) LIMITED, was founded in 2011 based at Shenzhen, China.
We have strong ability of molding manufacture and renovation lighting fixture design/manufacturing. We have more than 10-year experience being in LED industry starting with LED encapsulation since 2005. Currently, there are 9-12 designer of the total 106 employees, and more than 3,000 square meters of workshop.
Quality is the core culture of our factory. We have a professional test facilities and trained QC team to ensure the quality of all the products. All products are CE certified as well as RoHS compliant.
Yuanye LED is the brand of DLX outdoor lighting fixture and have contributed a high reputation as a LED luminaire supplier both national and international.
If you are interested in any of our products, we warmly welcome you to contact or visit us with your inquiries.
