yuanyeled - Goodwill Waterproof Outdoor Light 6w 9w 10w 12w 15w 18w 20w 24w 30w 36w 42w 45w 48w 50w 54w Rgb Rgbw Dmx512 Dali Led Wall Washer Promotional / Ready to Ship
Our professional engineers have expertise in using technologies. It has a wide scope of range and is widely seen in the field(s) of Wall Washers. Shenzhen Dinglixiang Electronic Co.,Ltd. can make your Goodwill Waterproof Outdoor Light 6w 9w 10w 12w 15w 18w 20w 24w 30w 36w 42w 45w 48w 50w 54w Rgb Rgbw Dmx512 Dali Led Wall Washer famous and visible in the eyes of your target buyers and get a great response from them. Shenzhen Dinglixiang Electronic Co.,Ltd. will continue to work hard to improve our capabilities in R&D strength and technologies because they are the core competitiveness of our company. We aim to provide customers with the most satisfying and cost-effective products with our full efforts.
| Color Temperature(CCT) | 2700K (Soft Warm White) | Lamp Luminous Efficiency(lm/w) | 80 |
| Color Rendering Index(Ra) | 80 | Support Dimmer | Yes |
| Lighting solutions service | Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation | Lifespan (hours) | 50000 |
| Working Time (hours) | 50000 | Light Source | LED |
| Item Type | Wall Washers | Input Voltage(V) | dc 12v 24v ac 100v - 240v |
| Lamp Luminous Flux(lm) | 80lm/w at 6000K | CRI (Ra>) | 75 |
| Warranty(Year) | 2 years | Working Temperature(℃) | -25 - 50 |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum housing n tempered glass cover |
| IP Rating | IP65 | Place of Origin | Guangdong, China |
| Brand Name | Yuanyeled | Model Number | YY-XQ..W-4057 |
| Application | outdoor architectural facade,window, landscape,amusement,hotel,bridge | beam angle options | 5°,10°,15°,30°,45°,60°,90° |
| length | standard 1000mm,custom 100mm to 1500mm | width n height without bracket | w40mm h57mm |
| height with bracket | 103.54mm or 83.54mm | standard grey finish | custom finish with extra charges |
| tempered glass | frosted,clear | standard 15cm pigtail | custom length with extra charges |
| built-in ac or dc driver | same as the above marked price | dmx controller, decoder,external driver | sold separately |
| standard 2 years warranty | above 2 years with extra charges |
LED outdoor wall washer light
This is 100% factory owned private mold with 6063 Aluminum Housing puls Tempered Glass Cover,beautiful appearance and reasonable waterproof structure,as well as heat-resisting and impact resistance.
This wall washer is suitable for outdoor, indoor use.
The waterproof is IP20,IP65, IP67 and IP68.
• Multiple Power Options - custom watt 1w to 50w
• Input Voltage Options – AC100-240V, AC/DC12V,24V,36V,48V(model with W40*H57mm) ;
AC/DC12V,24V,36V,48V(model with W40*H33mm)
• Light color Option - RGB/RGBW/Single color(Red, blue, green, yellow, pink, purple, white color ...) RGBCCT,RGBWCCT
• Beam angle Option - 5°,8°,10°,15°,30°,45°,60°,90°,120°,10ox15o,10ox35o,10ox45o,10ox50o,10ox60o,30ox65o
• Eco-friendly, UV-Resistant, waterproof IP20,IP65,IP67 and IP68.
• 2 models for options, same width 40mm, custom length 1200mm maximum, hight 57mm or 33mm.
Name | Value | ||||
Reference size and watt (YY-XQ..W-4057 and YY-XQ..W-4033 suitable) | L100mm,2w,3w,4w,5w L150mm,4w,5w, 6w,7w L200mm,6w,7w,8w,9w,10w L250mm,8w,9w,10w,12w L300mm,12w,14w,15w L350mm,12w,14w,15w,16w,17w L400mm,16w,17w,18w,19w,20w L450mm,18w,19w,20w,21w,22w L500mm,18w,19w,20w,21w,22w,23w,24w,25w L550mm,18w,20w,21w,22w,23w,24w,25w,26w,27w L600mm,18w,20w,21w,22w,23w,24w,25w,26w,27w,28w,29w,30w L650mm,18w,20w,21w,22w,23w,24w,25w,26w,27w,28w,29w,30w,31w,32w L700mm,18w,20w,23w,24w,25w,26w,27w,28w,29w,30w,31w,32w,33w,34w,35w L750mm,18w,20w,24w,25w,26w,27w,28w,29w,30w,31w,32w,33w,34w,35w,36w,37w L800mm,18w,20w,24w,25w,27w,28w,29w,30w,31w,32w,34w,35w,36w,37w,39w,40w L850mm,18w,20w,24w,25w,27w,28w,29w,30w,31w,32w,34w,35w,36w,37w,40w,42w L900mm,18w,20w,24w,25w,27w,28w,29w,30w,31w,32w,35w,36w,37w,40w,42w,45w L950mm,18w,20w,24w,25w,27w,28w,29w,30w,31w,32w,35w,36w,40w,42w,45w,47w L1000mm,18w,20w,24w,25w,27w,28w,30w,32w,35w,36w,40w,42w,45w,47w,48w,50w L1200mm,18w,20w,24w,25w,27w,28w,30w,32w,35w,36w,40w,42w,45w,47w,48w,50w | ||||
Width n Height | YY-XQ..W-4057, width 40mm, height 57mm YY-XQ..W-4033, width 40mm, height 33mm | ||||
Material | Aluminum + Tempered Glass | ||||
Light Source | Brand SMD with lifespan 50000 Hours | ||||
CCT | 2200K,2700K,3000K,4000K,4500K,5000K, 6000K,6500K, RED,BLUE, GREEN,YELLOW,AMBER RGB, RGBW, RGBY, RGBCCT,RGBWCCT (CCT: Correlated Color Temperature) | ||||
Waterproof Rate | IP20 IP65 IP67 IP68 | ||||
Input Voltage | YY-XQ..W-4057, AC100-240V, AC/DC12V,24V,36V,48V YY-XQ..W-4033, AC/DC12V,24V,36V,48V | ||||
control/dimming | ON/OFF, DMX512,DALI,0/1-10V, TRIAC,PWM,ZIGBEE... | ||||
Certificate | CE , RoHS | ||||
Package and Logo | Standard Export Carton with Individual pack / PE layer ; Customized packing and Logo is acceptable. | ||||
underwater, wet location, coastal regions...
All our products are CE certified as well as RoHS compliant. Please contact us too if you need UL/CUL.
Shenzhen Dinglixiang Electronic Co., Ltd
Shenzhen Dinglixiang Electronic Co., Ltd, factory of DLX (H.K.) LIMITED, was founded in 2011 based at Shenzhen, China.

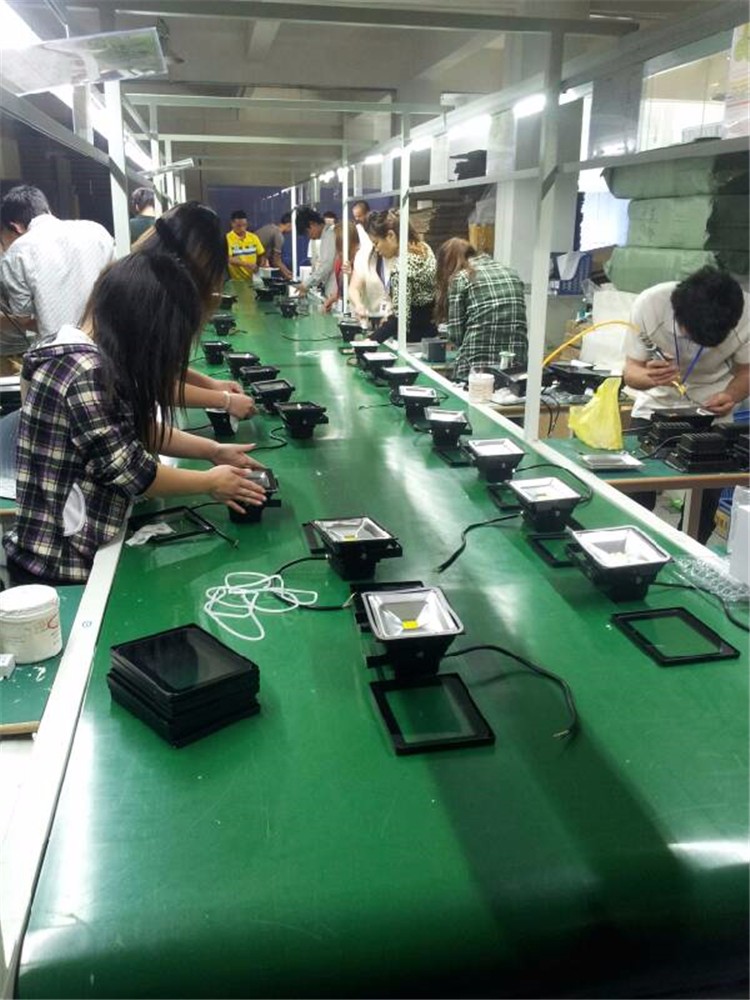

We have strong ability of molding manufacture and renovation lighting fixture design/manufacturing. We have more than 10-year experience being in LED industry starting with LED encapsulation since 2005. Currently, there are 9-12 designer of the total 106 employees, and more than 3,000 square meters of workshop.
Quality is the core culture of our factory. We have a professional test facilities and trained QC team to ensure the quality of all the products. All products are CE certified as well as RoHS compliant.
Yuanye LED is the brand of DLX outdoor lighting fixture and have contributed a high reputation as a LED luminaire supplier both national and international.
If you are interested in any of our products, we warmly welcome you to contact or visit us with your inquiries.
