Shenzhen Dinglixiang Electronic Co.,Ltd. devotes many years to developing and producing superb Single Color Dmx512 Power 48w 54w 72w Aluminum Led Wall Washer Linear Washer Light For Architectural Buildings as well as offering professional customer service. Single Color Dmx512 Power 48w 54w 72w Aluminum Led Wall Washer Linear Washer Light For Architectural Buildings is of high quality and moderate price, so you can buy with confidence. At present, Shenzhen Dinglixiang Electronic Co.,Ltd. are still a growing enterprise with a strong ambition to become one of the most competitive enterprises in the market. We will continue to research and develop new technologies for the birth of new products. Also, we will grasp the precious tide of opening up and reform to attract customers all over the world.

Lighting solutions serviceLighting and circuitry design, auto CAD layout, Onsite metering, Project InstallationLight SourceLED
Item TypeWall WashersWarranty(Year)5-Year
Place of OriginChinaApplicationTheme Park
Item No.2016 New LED grow light can be used on greenhouse/farm/gradenLED typeEpistar/Bridgelux/Creechips
Sizelength 500/600/1000/1200/1500mm

Product Description

LED outdoor wall washer light

This is 100% factory owned private mold with 6063 Aluminum Housing puls Tempered Glass Cover,beautiful appearance and reasonable waterproof structure,as well as heat-resisting and impact resistance.

This wall washer is suitable for outdoor, indoor use.

The waterproof is IP20,IP65, IP67 and IP68.

Features

• Multiple Power Options - custom watt 1w to 50w

• Input Voltage Options – AC100-240V, AC/DC12V,24V,36V,48V(model with W40*H57mm) ;

AC/DC12V,24V,36V,48V(model with W40*H33mm)
• Light color Option - RGB/RGBW/Single color(Red, blue, green, yellow, pink, purple, white color ...) RGBCCT,RGBWCCT
• Beam angle Option - 5°,8°,10°,15°,30°,45°,60°,90°,120°,10ox15o,10ox35o,10ox45o,10ox50o,10ox60o,30ox65o
• Eco-friendly, UV-Resistant, waterproof IP20,IP65,IP67 and IP68.

• 2 models for options, same width 40mm, custom length 1200mm maximum, hight 57mm or 33mm.

Name
Value
Reference size and watt
(YY-XQ..W-4057 and YY-XQ..W-4033 suitable)



L100mm,2w,3w,4w,5w
L150mm,4w,5w, 6w,7w
L200mm,6w,7w,8w,9w,10w
L250mm,8w,9w,10w,12w
L300mm,12w,14w,15w
L350mm,12w,14w,15w,16w,17w
L400mm,16w,17w,18w,19w,20w
L450mm,18w,19w,20w,21w,22w
L500mm,18w,19w,20w,21w,22w,23w,24w,25w
L550mm,18w,20w,21w,22w,23w,24w,25w,26w,27w L600mm,18w,20w,21w,22w,23w,24w,25w,26w,27w,28w,29w,30w
L650mm,18w,20w,21w,22w,23w,24w,25w,26w,27w,28w,29w,30w,31w,32w
L700mm,18w,20w,23w,24w,25w,26w,27w,28w,29w,30w,31w,32w,33w,34w,35w
L750mm,18w,20w,24w,25w,26w,27w,28w,29w,30w,31w,32w,33w,34w,35w,36w,37w
L800mm,18w,20w,24w,25w,27w,28w,29w,30w,31w,32w,34w,35w,36w,37w,39w,40w
L850mm,18w,20w,24w,25w,27w,28w,29w,30w,31w,32w,34w,35w,36w,37w,40w,42w
L900mm,18w,20w,24w,25w,27w,28w,29w,30w,31w,32w,35w,36w,37w,40w,42w,45w
L950mm,18w,20w,24w,25w,27w,28w,29w,30w,31w,32w,35w,36w,40w,42w,45w,47w
L1000mm,18w,20w,24w,25w,27w,28w,30w,32w,35w,36w,40w,42w,45w,47w,48w,50w
L1200mm,18w,20w,24w,25w,27w,28w,30w,32w,35w,36w,40w,42w,45w,47w,48w,50w
Width n Height
YY-XQ..W-4057, width 40mm, height 57mm
YY-XQ..W-4033, width 40mm, height 33mm
Material
Aluminum + Tempered Glass
Light Source
Brand SMD with lifespan 50000 Hours
CCT
2200K,2700K,3000K,4000K,4500K,5000K, 6000K,6500K, RED,BLUE, GREEN,YELLOW,AMBER
RGB, RGBW, RGBY, RGBCCT,RGBWCCT
(CCT: Correlated Color Temperature)
Waterproof Rate
IP20 IP65 IP67 IP68
Input Voltage
YY-XQ..W-4057, AC100-240V, AC/DC12V,24V,36V,48V
YY-XQ..W-4033, AC/DC12V,24V,36V,48V
control/dimming
ON/OFF, DMX512,DALI,0/1-10V, TRIAC,PWM,ZIGBEE...
Certificate
CE , RoHS
Package and Logo
Standard Export Carton with Individual pack / PE layer ;
Customized packing and Logo is acceptable.
Application

underwater, wet location, coastal regions...

Certifications

All our products are CE certified as well as RoHS compliant. Please contact us too if you need UL/CUL.

About us

Shenzhen Dinglixiang Electronic Co., Ltd


Shenzhen Dinglixiang Electronic Co., Ltd, factory of DLX (H.K.) LIMITED, was founded in 2011 based at Shenzhen, China.

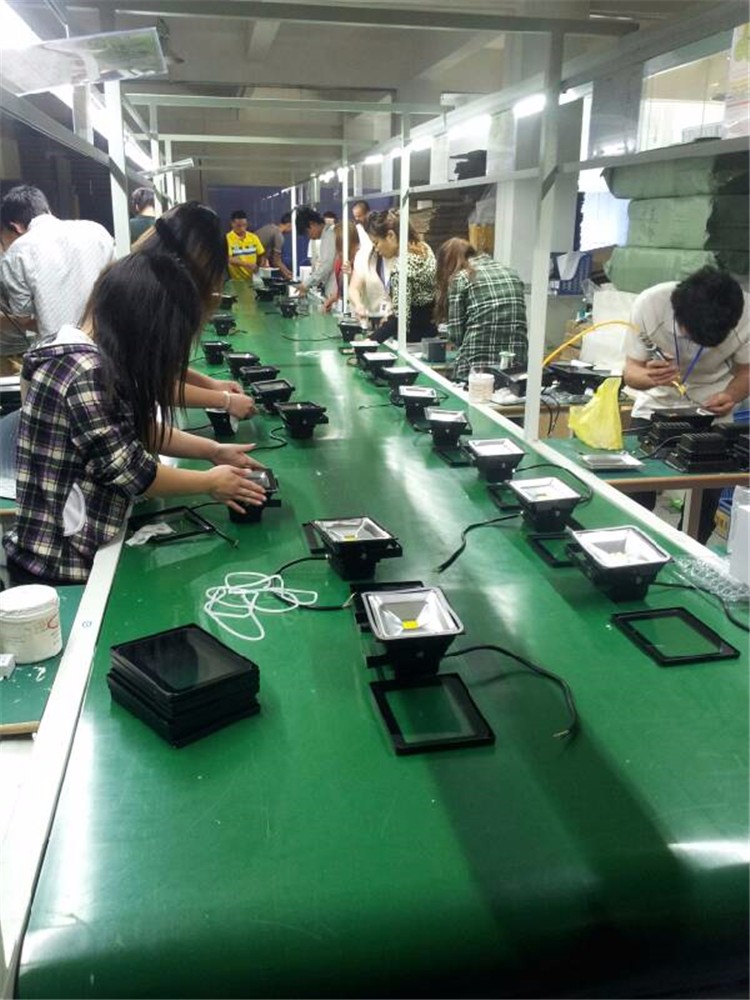

We have strong ability of molding manufacture and renovation lighting fixture design/manufacturing. We have more than 10-year experience being in LED industry starting with LED encapsulation since 2005. Currently, there are 9-12 designer of the total 106 employees, and more than 3,000 square meters of workshop.

Quality is the core culture of our factory. We have a professional test facilities and trained QC team to ensure the quality of all the products. All products are CE certified as well as RoHS compliant.

Yuanye LED is the brand of DLX outdoor lighting fixture and have contributed a high reputation as a LED luminaire supplier both national and international.
