In the fierce market competition, Shenzhen Dinglixiang Electronic Co.,Ltd. has grown continuously. We invest in R&D to find better solutions in the Flood Lights industry. The continued success of our product has been built upon consistent and competitive pricing, quality workmanship, quick response time and outstanding customer service. Shenzhen Dinglixiang Electronic Co.,Ltd. will keep focusing on customers' needs and keep up with the industry trends so as to develop Remote Control Functional Led Spot Light 72w 90w 120w Flood Light Adjustable Lamp that better satisfy customers. Our wish is to cover a wide range of global markets and win wider recognition from customers all over the world.

Place of OriginGuangdong, ChinaBrand NameYuanyeled
Model NumberSG0016ApplicationOutdoor,window,landscape lighting,amusement
Color Temperature(CCT)RGB RGBWIP RatingIP67
Lamp Body MaterialAluminumBeam Angle(°)15°,30°,45°,60°,90°
CRI (Ra>)80Input Voltage(V)DC 24V AC 85-265V meanwell driver
Lamp Luminous Efficiency(lm/w)80Lamp Luminous Flux(lm)80 lumens /w
Warranty(Year)2 years,3 years,5 yearsWorking Lifetime(Hour)50000
Working Temperature(℃)-40 - 50Color Rendering Index(Ra)≥80
Light SourceLEDSupport DimmerYes
Lighting solutions serviceLighting and circuitry design, Onsite metering, DIALux evo layout, LitePro DLX layout, auto CAD layout, Agi32 layout, Project InstallationLifespan (hours)50000
Product Weight(kg)7.5Product NameDmx 512 waterproof led spot light
SizeCustom Dia 235mm Width 245mm Height 300mmWattageFrom 72w to 162w
dmx 512 signalAddressable n programmable with dmx decoderControlDmx 512 controller control or wifi/ wireless remote control
CCT3000K, 4000K, 6500K RGB , RGBWBeam angle15°,30°,45°,60°,90
House FinishSilver/Grey/BlackLight sourceSmd/cob 5050, 2835,3535,3030 chip

Product Description

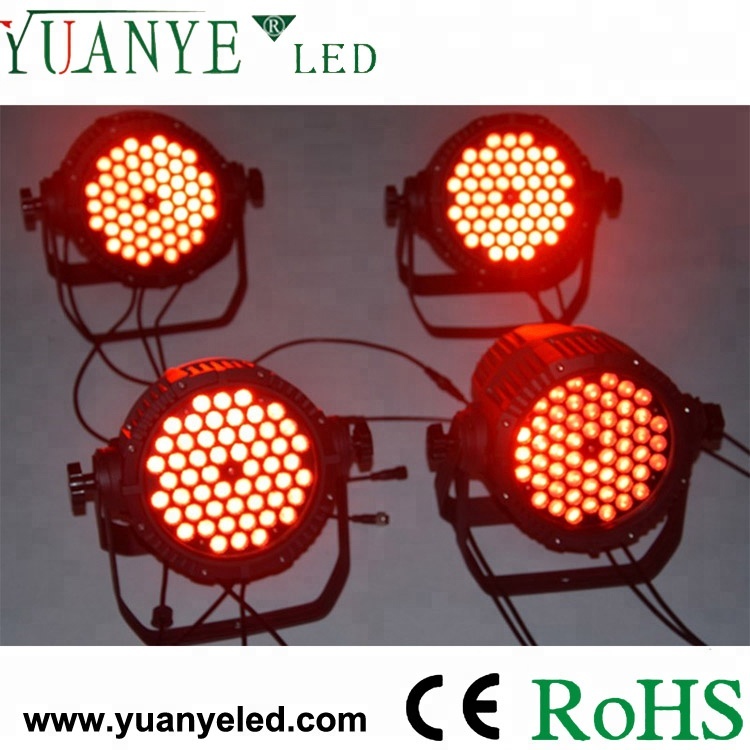

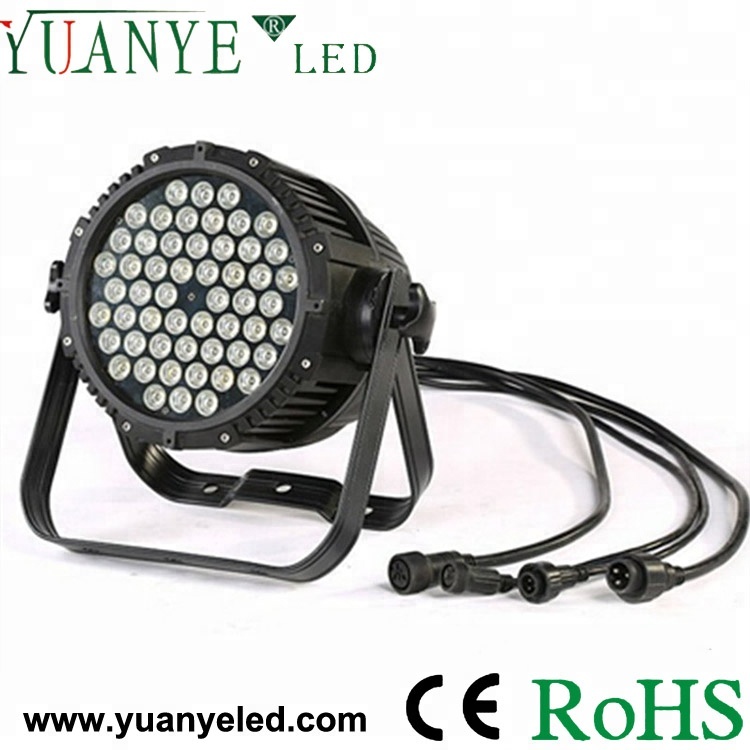

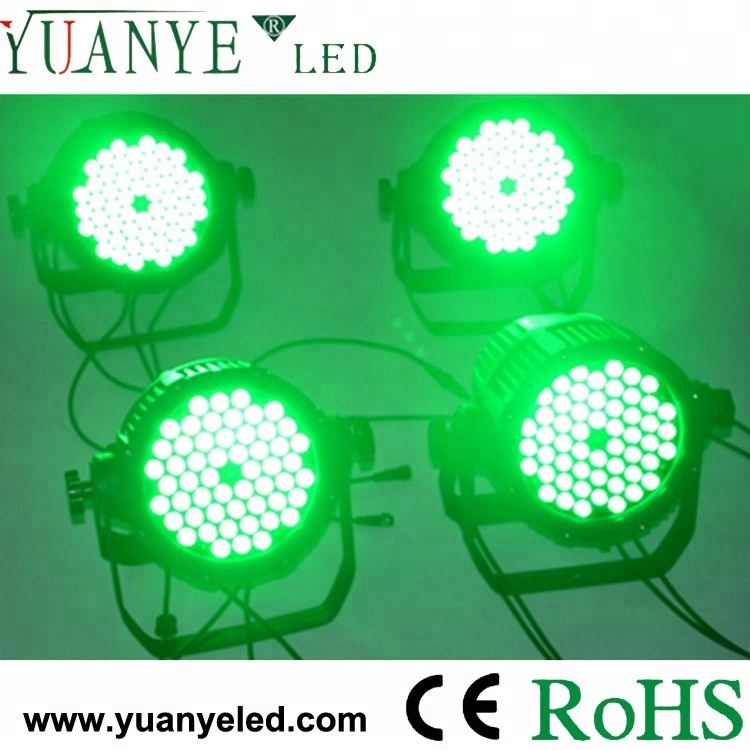

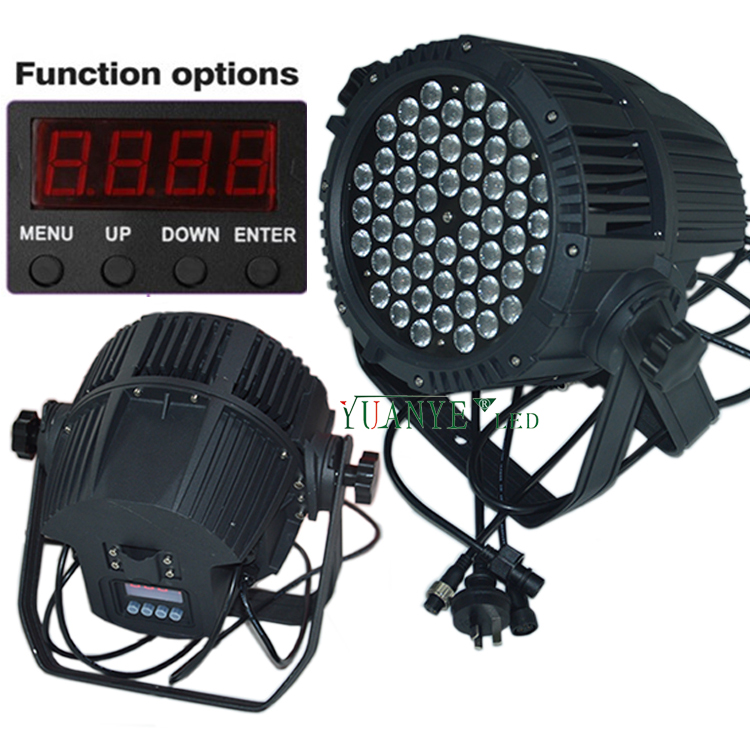

Led Flood Spot Light

This series of Flood Spot lights are designed to meet outdoor lighting demand of bracket mounted and give more choice for lighting designer. Contributed its material, the light have a great performance in anti-rust and salt, can be used in outdoor. Our LED solutions have a lifespan of 50,000 hours, thus eliminating the need to replace bulbs. Our solutions are available in high Lumens output. Our light are made of durable meterial for long lasting use.

Features

• Multiple Power Option - 72w to 162w
• Input Voltage Option – DC24V AC85-265V
• Light color Option - RGB/RGBW/Single color(Red, blue, green, yellow, pink, purple, white color ...) RGBCCT, RGBWCCT
• Beam angle Option - 5°,8°,10°,15°,30°,45°,60°,90°,120°,
• Eco-friendly, UV-Resistant, waterproof IP 67.
• Kinds of size can be designed according to customer requirements.

Name
Value
Size
 Dia 235mm  Width 245mm  Height 300mm  Watt from 72w to 162w
Material
Aluminum + Tempered Glass
Light Source
Brand SMD/COB with lifespan 50000 Hours
CCT
2700K-6500K, RGB single color or RGB/RGBW full color(CCT: Correlated Color Temperature)
Waterproof Rate
 IP65 IP66 IP67
Input Voltage
DC24V AC85-265V
Control/Dimming
ON/OFF, DMX512, DALI, 0/1-10V, TRIAC, PWM, ZIGBEE, PWM...
Certificate
CE , RoHS
Package and Logo
Standard Export Carton with Individual pack / PE layer;
Customized packing and Logo is acceptable.
Application

outdoor,window, landscape lighting, amusement, hotel, bridge, building

Certifications

All our products are CE certified as well as RoHS compliant. Please contact us too if you need UL/CUL.

About us

Shenzhen Dinglixiang Electronic Co., Ltd


Shenzhen Dinglixiang Electronic Co., Ltd, factory of DLX (H.K.) LIMITED, was founded in 2011 based at Shenzhen, China.

We have strong ability of molding manufacture and renovation lighting fixture design/manufacturing. We have more than 10-year experience being in LED industry starting with LED encapsulation since 2005. Currently, there are 9-12 designer of the total 106 employees, and more than 3,000 square meters of workshop.

Quality is the core culture of our factory. We have a professional test facilities and trained QC team to ensure the quality of all the products. All products are CE certified as well as RoHS compliant.

Yuanye LED is the brand of DLX outdoor lighting fixture and have contributed a high reputation as a LED luminaire supplier both national and international.

If you are interested in any of our products, we warmly welcome you to contact or visit us with your inquiries.
