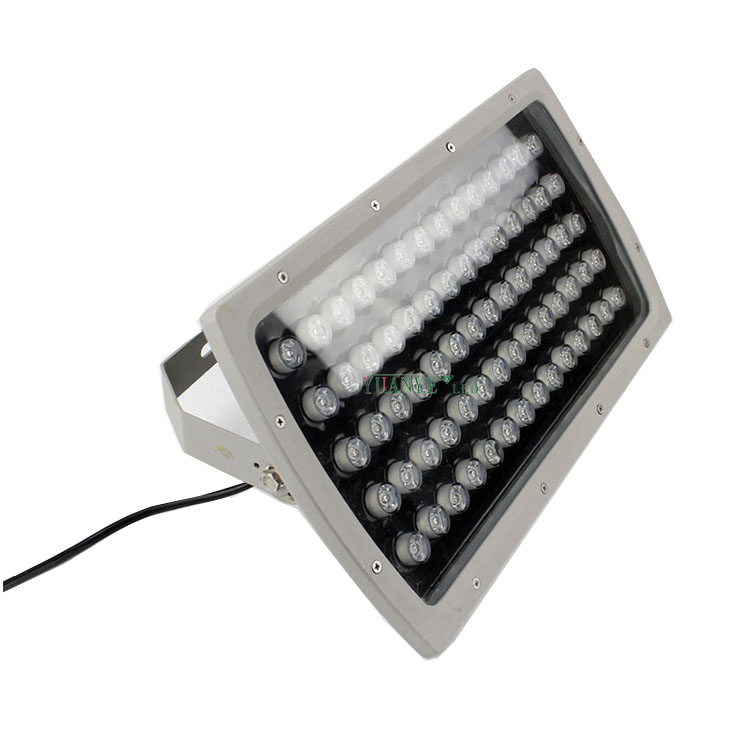

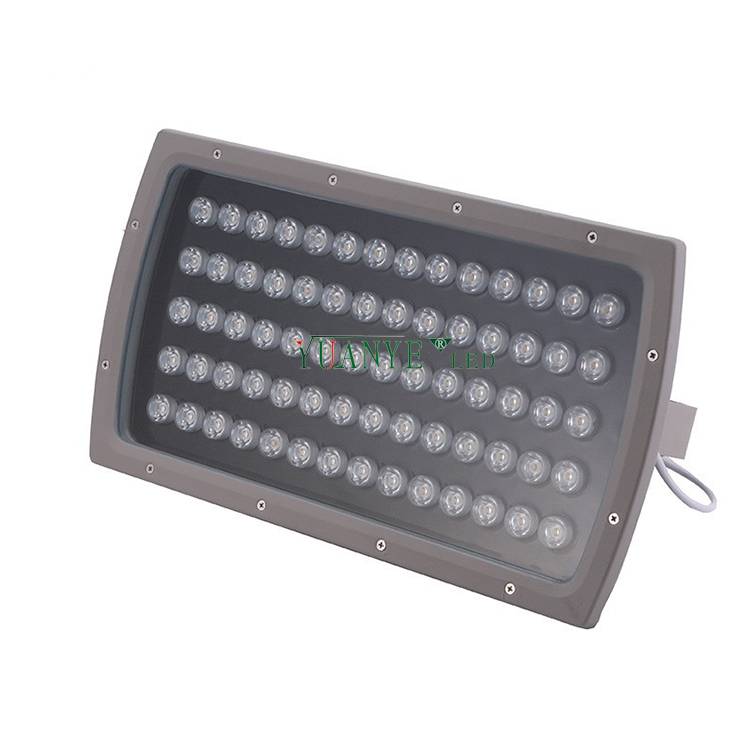

Shenzhen Dinglixiang Electronic Co.,Ltd. actively absorb the advanced manufacturing technology and production technology of excellent domestic and foreign companies, and successfully develop Facade Landscape Led Flood Light Remote Control Spot Lamps Waterproof Spot Lighting using new technology and new technology. Our range of Flood Lights are made with the best ingredient. Combining all good performance of adopted raw materials, our Facade Landscape Led Flood Light Remote Control Spot Lamps Waterproof Spot Lighting has been proved to be applied to the field(s) of Flood Lights.Our staff has tested multiple times that in the applied fields, the product can give out its best performance such as durability and stability.
| Place of Origin | Guangdong, China | Brand Name | Yuanyeled |
| Model Number | YY-TG4L | Application | Outdoor,window,landscape lighting,amusement |
| Color Temperature(CCT) | RGB RGBW | IP Rating | IP67 |
| Lamp Body Material | Aluminum | Beam Angle(°) | 15°,30°,45°,60°,90° |
| CRI (Ra>) | 80 | Input Voltage(V) | DC 24V AC 85-265V meanwell driver |
| Lamp Luminous Efficiency(lm/w) | 80 | Lamp Luminous Flux(lm) | 80 lumens /w |
| Warranty(Year) | 2 years,3 years,5 years | Working Lifetime(Hour) | 50000 |
| Working Temperature(℃) | -40 - 50 | Color Rendering Index(Ra) | ≥80 |
| Certification | PSE, RoHS, CE, GS, UL | Light Source | LED |
| Support Dimmer | Yes | Lighting solutions service | Lighting and circuitry design, Onsite metering, DIALux evo layout, LitePro DLX layout, auto CAD layout, Agi32 layout, Project Installation |
| Lifespan (hours) | 50000 | Product Weight（kg） | 9 |
| Product Name | Remote control functional flood light | Size | Custom Length 440/560mm Width 240/360mm Height 200/254mm |
| Wattage | Watt from 72w to 288w | dmx 512 signal | Addressable n programmable with dmx decoder |

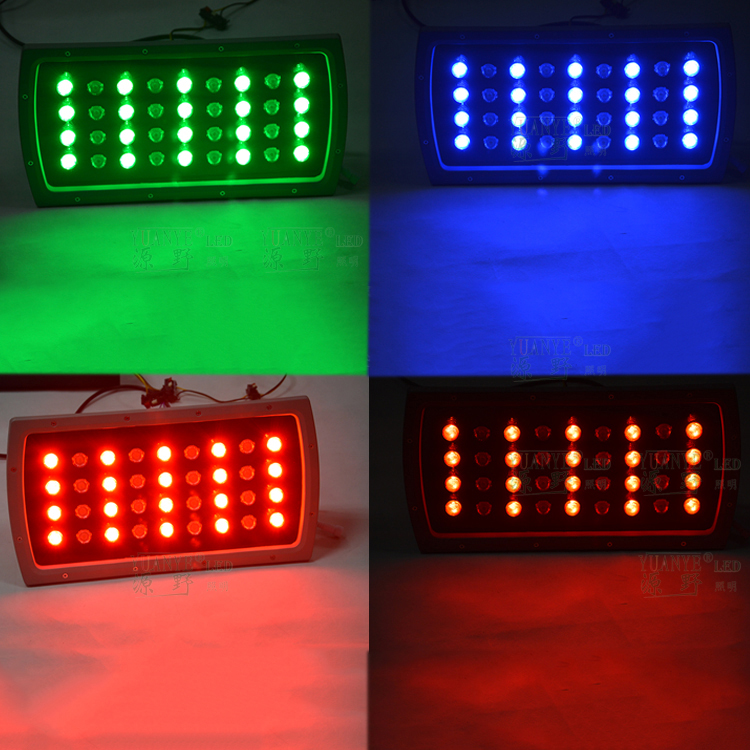

| Control | Dmx 512 controller control or wifi/ wireless remote control | CCT | 3000K, 4000K, 6500K RGB , RGBW |
| Beam angle | 15°,30°,45°,60°,90 | House Finish | Silver/Grey/Black |
| Light source | Smd/cob 5050, 2835,3535,3030 chip |
Name | Value | ||||
Size | Length 440mm Width 240mm Height 200mm Length 560 Width 360mm Height 254mm Watt from 72w to 288w | ||||
Material | Aluminum + Tempered Glass | ||||
Light Source | Brand SMD/COB with lifespan 50000 Hours | ||||
CCT | 2700K-6500K, RGB single color or RGB/RGBW full color(CCT: Correlated Color Temperature) | ||||
Waterproof Rate | IP65 IP66 IP67 | ||||
Input Voltage | DC24V AC85-265V | ||||
Control/Dimming | ON/OFF, DMX512, DALI, 0/1-10V, TRIAC, PWM, ZIGBEE, PWM... | ||||
Certificate | CE , RoHS | ||||
Package and Logo | Standard Export Carton with Individual pack / PE layer; Customized packing and Logo is acceptable. | ||||

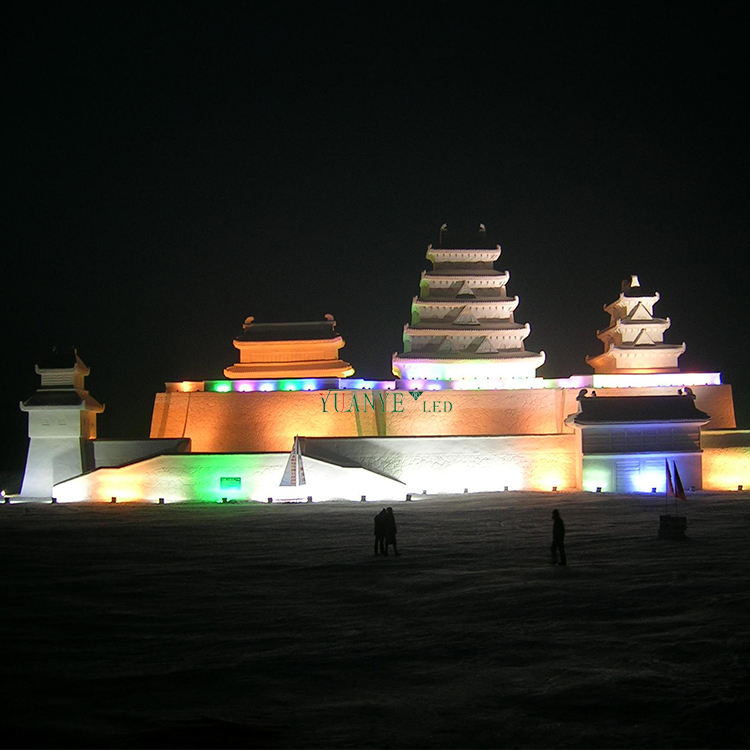

outdoor,window, landscape lighting, amusement, hotel, bridge, building, garden,...
All our products are CE certified as well as RoHS compliant. Please contact us too if you need UL/CUL.
Shenzhen Dinglixiang Electronic Co., Ltd
Shenzhen Dinglixiang Electronic Co., Ltd, factory of DLX (H.K.) LIMITED, was founded in 2011 based at Shenzhen, China.
We have strong ability of molding manufacture and renovation lighting fixture design/manufacturing. We have more than 10-year experience being in LED industry starting with LED encapsulation since 2005. Currently, there are 9-12 designer of the total 106 employees, and more than 3,000 square meters of workshop.
Quality is the core culture of our factory. We have a professional test facilities and trained QC team to ensure the quality of all the products. All products are CE certified as well as RoHS compliant.
Yuanye LED is the brand of DLX outdoor lighting fixture and have contributed a high reputation as a LED luminaire supplier both national and international.
If you are interested in any of our products, we warmly welcome you to contact or visit us with your inquiries.
