In the fierce market competition, Shenzhen Dinglixiang Electronic Co.,Ltd. has grown continuously. We invest in R&D to find better solutions in the Wall Washers industry. Waterproof Outdoor Wall Washer Led Stage Light Technology China Landscape Lighting with reasonable price, excellent performance and excellent quality, it has won wide recognition from customers. Compared with the traditional ones, it better meets the market demands.
Color Temperature(CCT) | RGB RGBW | Lamp Luminous Efficiency(lm/w) | 80 |
Color Rendering Index(Ra) | ≥80 | Support Dimmer | Yes |
Lighting solutions service | Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation | Lifespan (hours) | 50000 |
Working Time (hours) | 50000 | Product Weight(kg) | 12 |
Light Source | LED | Item Type | Wall Washers |
Input Voltage(V) | DC 24V AC 85-265V meanwell driver | Lamp Luminous Flux(lm) | 80 lumens /w |
CRI (Ra>) | 80 | Warranty(Year) | 2 years,3 years,5 years |
Working Temperature(℃) | -40 - 50 | Working Lifetime(Hour) | 50000 |
Lamp Body Material | Aluminum | IP Rating | IP67 |
Place of Origin | Guangdong, China | Brand Name | Yuanyeled |
Model Number | YY-XQ154120 | Application | Outdoor,window,landscape lighting,amusement,architectural,indoor |
Product Name | DMX 512 function options led wash light | Size | Custom Length 300-1200mm Width: 154mm Height: 120mm |
Wattage | from 100 to 288w | Installation | Floor,wall mounted |
dmx 512 signal | Addressable n programmable with dmx decoder | Control | Dmx 512 controller control or wifi/ wireless remote control |
CCT | 3000K, 4000K, 6500K RGB , RGBW | Beam angle | 15°,30°,45°,60°,90 |
House Finish | Silver/Grey/Black | Light source | Smd/cob 5050, 2835,3535,3030 chip |
This is 100% factory owned private mold with 6063 Aluminum Housing puls Tempered Glass Cover,beautiful appearance and reasonable waterproof structure,as well as heat-resisting and impact resistance.
This wall washer is suitable for outdoor, indoor use.
The waterproof is IP66, IP67 and IP68.
• Multiple Power Options - custom watt 72w to 288w
• Input Voltage Options – AC85-265V, DC24V
• Light color Option - RGB/RGBW/Single color(Red, blue, green, yellow, pink, purple, white color ...) RGBCCT,RGBWCCT
• Beam angle Option - 15°,30°,45°,60°,90°
• Eco-friendly, UV-Resistant, waterproof IP66,IP67 and IP68.
Name | Value | ||||
Size | Length:300-1200mm Width:88mm Height :70mm | ||||
Material | Aluminum + Tempered Glass | ||||
Light Source | Brand SMD/COB with lifespan 50000 Hours | ||||
CCT | 2200K,2700K,3000K,4000K,4500K,5000K, 6000K,6500K, RED,BLUE, GREEN,YELLOW,AMBER RGB, RGBW, RGBY, RGBCCT,RGBWCCT (CCT: Correlated Color Temperature) | ||||
Waterproof Rate | IP66 IP67 IP68 | ||||
Input Voltage | DC24V AC85-265V | ||||
Control/Dimming | ON/OFF, DMX512, DALI, 0/1-10V, TRIAC, PWM, ZIGBEE, PWM... | ||||
Certificate | CE , RoHS | ||||
Package and Logo | Standard Export Carton with Individual pack / PE layer; Customized packing and Logo is acceptable. |
outdoor,window, landscape lighting, amusement, city lighting
All our products are CE certified as well as RoHS compliant. Please contact us too if you need UL/CUL.
Shenzhen Dinglixiang Electronic Co., Ltd

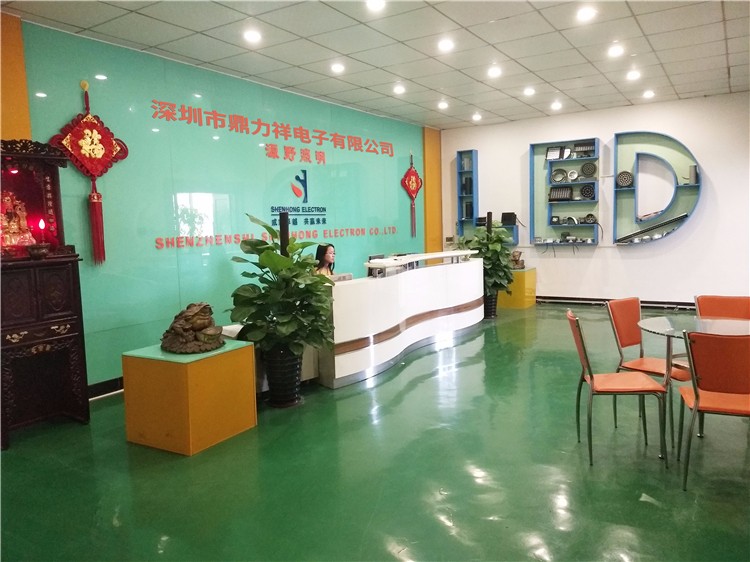

Shenzhen Dinglixiang Electronic Co., Ltd, factory of DLX (H.K.) LIMITED, was founded in 2011 based at Shenzhen, China.

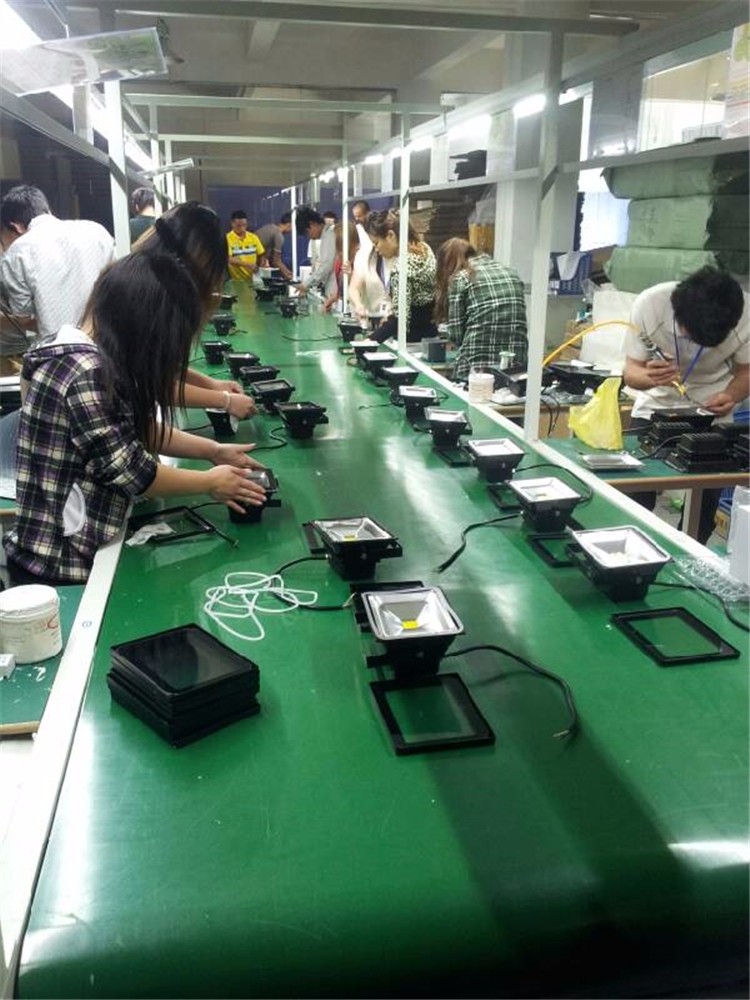

We have strong ability of molding manufacture and renovation lighting fixture design/manufacturing. We have more than 10-year experience being in LED industry starting with LED encapsulation since 2005. Currently, there are 9-12 designer of the total 106 employees, and more than 3,000 square meters of workshop.
Quality is the core culture of our factory. We have a professional test facilities and trained QC team to ensure the quality of all the products. All products are CE certified as well as RoHS compliant.
Yuanye LED is the brand of DLX outdoor lighting fixture and have contributed a high reputation as a LED luminaire supplier both national and international.
If you are interested in any of our products, we warmly welcome you to contact or visit us with your inquiries.
